How to configure a SMTP mail server with Postfix on Ubuntu 20.04

Published on: 20 October 2020

Mail Server Ubuntu

Postfix is ​​a server-side application that allows you to implement the SMTP protocol to manage mail sending. It is one of the fastest solutions on the market, highly appreciated for the ease of its configuration and security.

In this tutorial how to install and configure the Postfix daemon on Linux Ubuntu 20.04 will be explained.

First, connect to your server via an SSH connection. If you haven’t done so yet, following our guide is recommended to connect securely with SSH. In case of a local server, go to the next point and open the terminal of your server.

Installation of Postfix

After connecting to the server via SSH, proceed with the installation of Postfix by running the following command:

$ sudo apt install postfix

During the installation you will be asked to select the mail server configuration type to be configured:

Mail server configuration

Use the TAB key to move on the "Ok" button and press ENTER to confirm.

Mail server configuration

Use the TAB key again, select the "Internet Site" configuration and confirm with the "Ok" key.

Mail server configuration

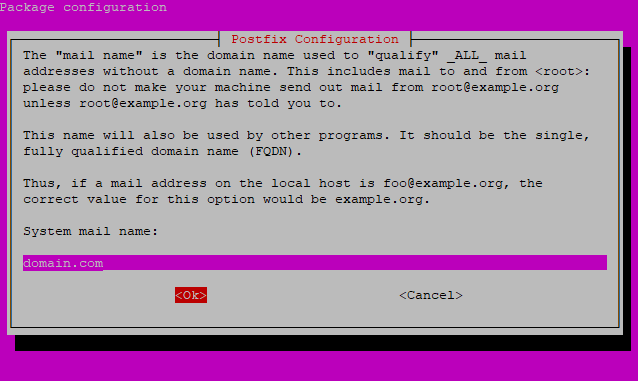

In the last screen, enter the domain used by the mail server to complete the configuration.

Once completed, Postfix should be properly installed on the system.

All Postfix configuration files are present in the / etc / postfix / folder. The two main files are main.cf and master.cf, although, for now, all you need to do is edit the main.cf file.

Before editing the main configuration file, make a backup of the existing version:

$ sudo cp /etc/postfix/main.cf /etc/postfix/main.cf.backup

Then, proceed by opening the file you just copied with a text editor:

$ sudo vim /etc/postfix/main.cf

All configuration lines do not have to start with space or tab characters. Any comments have to begin with the # character. Some basic parameters to be modified are listed below:

# Main server DNS

myhostname = mail.domain.com

mydomain = domain.com

myorigin = $mydomain

#Parameters for the interface used for listening ports:

inet_interfaces = all

inet_protocols = ipv4

mydestination = $myhostname, localhost.$mydomain, localhost, $mydomain

mynetworks = 127.0.0.0/8 168.100.189.0/24

relay_domains =

#  Backing directory for saving mailboxes

home_mailbox = Maildir/

In the configuration parameters above, the domain "domain.com" is used as an example: replace it with the one in your possession.

This configuration allows you to use the Postfix server both to send emails from the outside (for example through a mail client) and the inside. However, in the event you used Postfix only to send emails from a web service installed on the same machine, changing some parameters to increase the security of the service is preferrable:

# Main server DNS

myhostname = mail.domain.com

mydomain = domain.com

myorigin = $mydomain

#Parameters for the interface used for listening ports:

inet_interfaces = localhost

inet_protocols = ipv4

mydestination = $myhostname, localhost.$mydomain, localhost, $mydomain

mynetworks = 127.0.0.0/8

relay_domains = $mydestination

#Backing directory for saving mailboxes

home_mailbox = Maildir/

After saving the file, install and start the service to apply all the changes you just made:

$ sudo systemctl enable postfix

$ sudo systemctl start postfix

Remember that any further modification to the configuration files, would entail the need to reload the service:

$ sudo systemctl reload postfix

In case of problems, remember that the status and operating parameters on Postfix may be examined in detail by using the log file in the directory:

$ sudo tail /var/log/mail.log

Firewall configuration

In case of a firewall on your system, configure it to enable mail traffic.

When using the UFW firewall, pre-installed profiles for Postfix are provided. So let's see how to enable them.

To check the available profiles installed in the UFW firewall run this command:

$ sudo ufw app list

A list similar to the following will be shown on the screen:

Available applications:

  Dovecot IMAP

  Dovecot POP3

  Dovecot Secure IMAP

  Dovecot Secure POP3

  Nginx Full

  Nginx HTTP

  Nginx HTTPS

  OpenSSH

  Postfix

  Postfix SMTPS

  Postfix Submission

To allow mail traffic, use Postfix profiles.

To check profile information:

$ sudo ufw app info "Postfix"

After checking the profiles, you’re ready to enable them:

$ sudo ufw allow "Postfix"

$ sudo ufw allow "Postfix SMTPS"

$ sudo ufw allow "Postfix Submission"

Let's test the installation

To check the proper functioning of the server, proceed by using Telnet:

$ sudo telnet 127.0.0.1 25

If Postfix works correctly, it should respond as follows:

Trying 127.0.0.1...

Connected to localhost.

Escape character is '^]'.

220 localhost ESMTP Postfix

To test the actual mail sending use the mailx package. To install it, use apt:

$ sudo apt install bsd-mailx

Once completed, run the command:

$ sudo mailx -r [email protected] -s "SUBJECT" [EMAIL_ADDRESS]

N.B. Replace [EMAIL_ADDRESS] with the email address you want to send the test message to. Remember also to replace “domain.com” with your previously set domain.

Mail is now waiting for the body of the message: enter any text of your choice and, once completed, press [ENTER] [POINT] and [ENTER] again, as follows:

$ sudo mailx -r [email protected] -s "SUBJECT" [EMAIL_ADDRESS]


Message body
.

EOT

#

You should receive the above email at the address entered within minutes.
